The wire due to molding machine

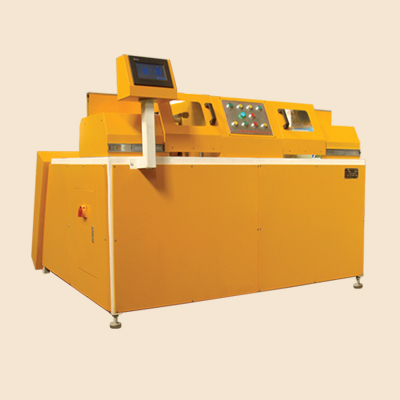

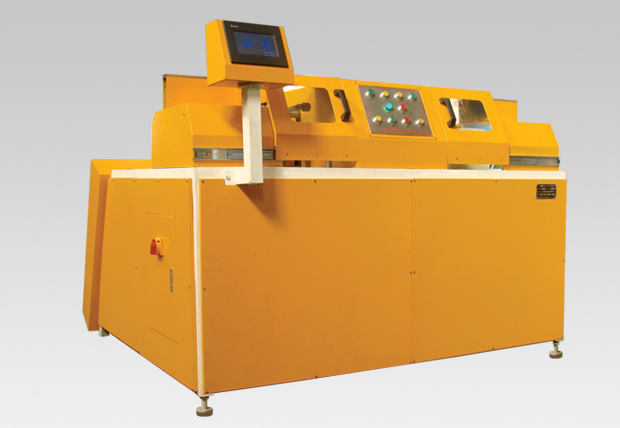

SYC-4 series of ordinary steel wire due to machine characteristics:

1.SYC-4 CNC steel wire predetermined molding machine is my company's own research and development for the SCR series winding machine auxiliary equipment.

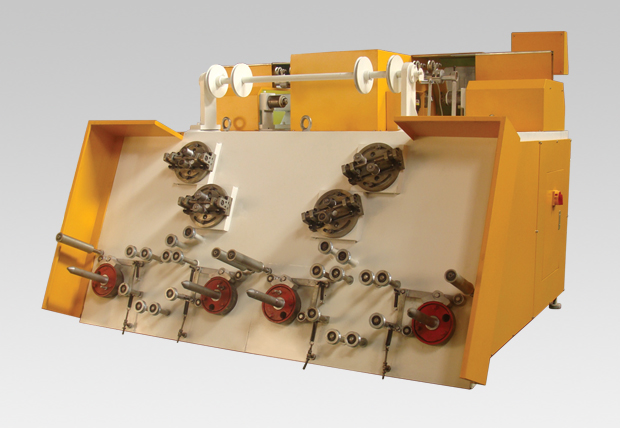

2.This equipment mainly provides the pre-forming of steel wire under the machine and the function of wire axle conductor for SCR series winding machine.
3.Equipped with a numerical control system, the use of(PLC + human-machine dialogue touch screen) has greatly reduced the difficulty of employees 'operations, improved the accuracy of wiring, cable collection and wire forming, and also greatly improved the speed of cable collection and reduced the number of employees.

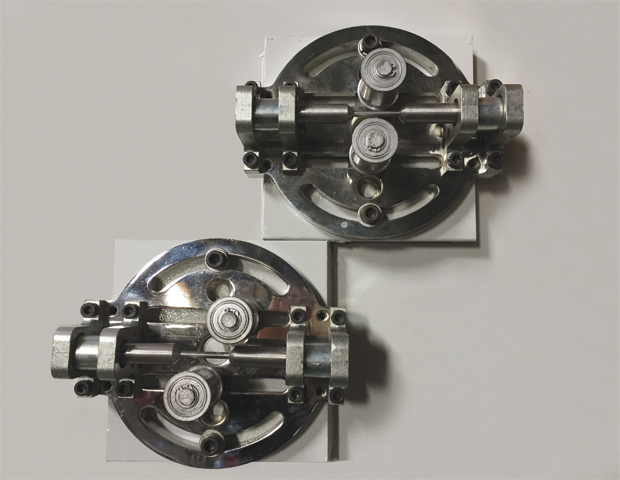

4.The roller molding mechanism developed and designed by our company has greatly improved the molding precision and reduced the damage of the traditional forming mechanism to the steel wire and the surface of the steel wire during the molding process.
5.The function of recording rice line has been added to ensure the accuracy of the length of the equipment's cable, and the waste of steel wire in the production process has been reduced.

Technical parameters:

CNC Steel wire pre-forming machine Technical parameters:
Product model	Spindle revolutions (m/min)	The speel diameter (mm)	Wire diameter (mm)	Motor power(kw)	Installation dimensions (L× W×H)
SYC-4	150-220	Φ180	Φ0.2-Φ0.8	4kw	1380×1674×1196
