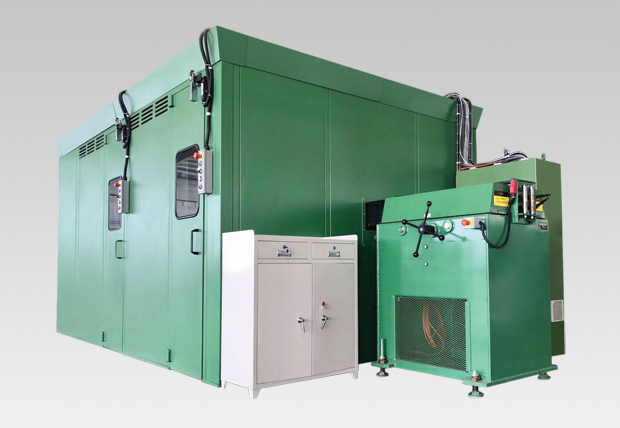

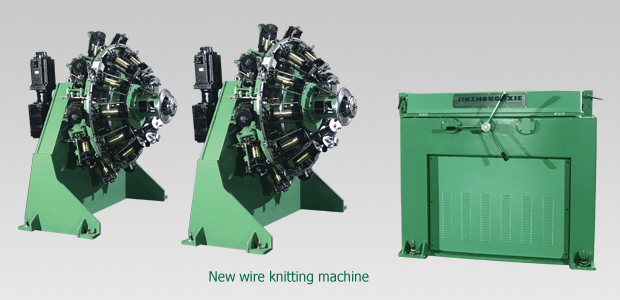

ZGB Series NC High Speed Linear Wire Knitting Machine

Description:

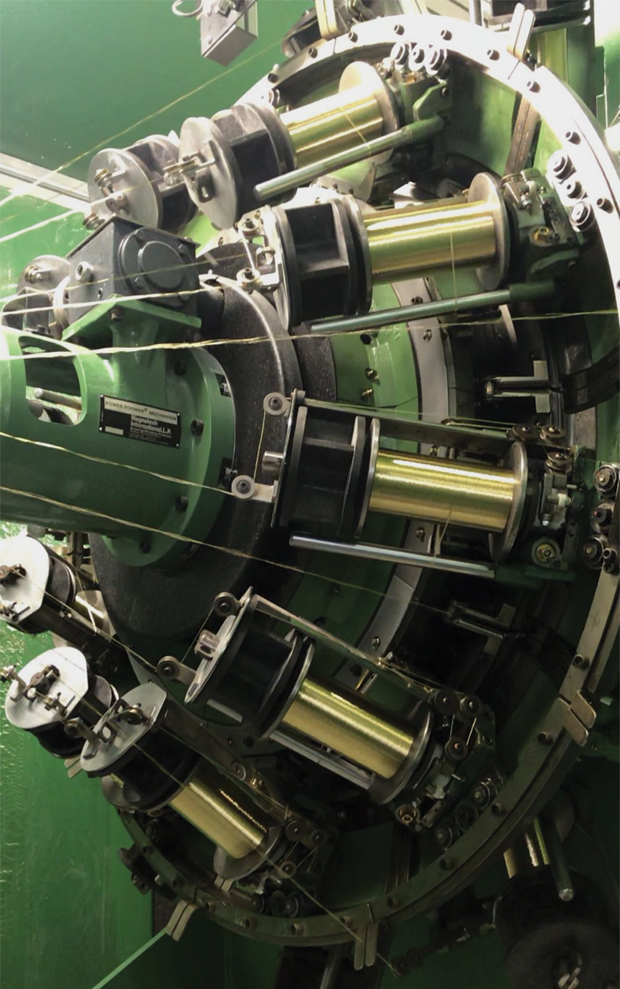

This machine is a new type of steel wire braiding machine developed and manufactured by our company. The machine adopts the principle of controlled rotation. The spindle is made into a circular straight line according to the circular track.Motion, it breaks through the traditional steel wire braiding 8-word handover principle at home and abroad, this machine is a new type of steel wire braiding machine with advanced technology and high content.

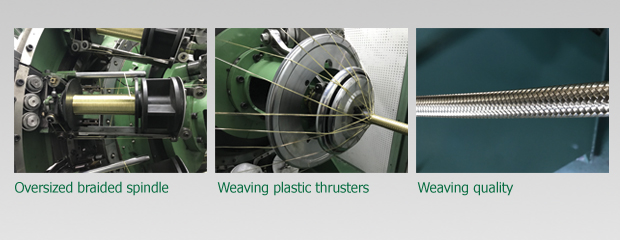

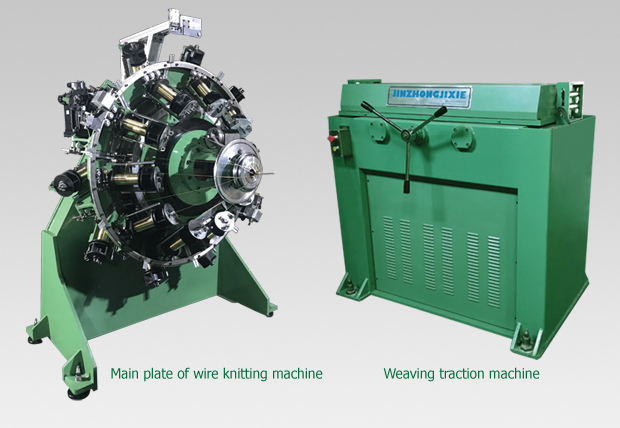

ZGB series CNC Linear high-speed loom structure and characteristics:

1.This machine adopts the principle of controlled rotation and the circular linear motion of spindle, which guarantees the stability of the tension force and improves the quality of weaving products.
2. The design of shaping driving mechanism makes the braiding more accurate, improves the braiding accuracy and greatly improves the braiding quality.
3. The design of circular linear motion of the spindle improves the spindle speed and greatly improves the production efficiency.
4. The large capacity of the line saves the waste of steel wire, reduces the frequency of wire transfer, improves the working efficiency, and reduces the production cost.
5. The fully enclosed muffling structure ensures the safe production of the operators and optimizes the working environment.
6. Automatic digital control is adopted to improve the mechanical precision, reduce the worker's operating skills, and achieve a one-person operation of multiple machines.
7.Door control stop alarm function.
8.Offline automatic parking function.
9.Man-Machine interface parameter setting.
10.Fixed Length Braiding Function.
11.Fault prompt function.
12.Three color alarm prompt.

Technical parameters:

ZGB series CNC high-speed linear wire loom technical parameters
Product model	Spindle largest revolutions (r/min)	Weaving pitch (mm)	Maximum braided hose Diameter (mm)	The central height (mm)	Motor power (kw)	Braided Angle	Bobbin capacity (kg)	Overall dimensions (L×W×H)
ZGB16-2S	90	15-70	Φ10	1311	18	54°44'	11.4	6433×2539×2590
ZGB20-2S	80	15-75	Φ13	1311	24	54°44'	13.3	6433×2539×2590
ZGB24-2S	68	15-90	Φ25	1311	24	54°44'	13.3	6433×2539×2590
ZGB36-2S	45	15-130	Φ32	1311	24	54°44'	13.3	6433×3055×2598
