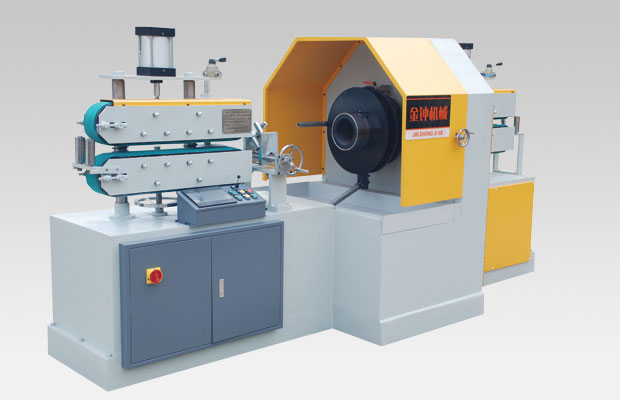

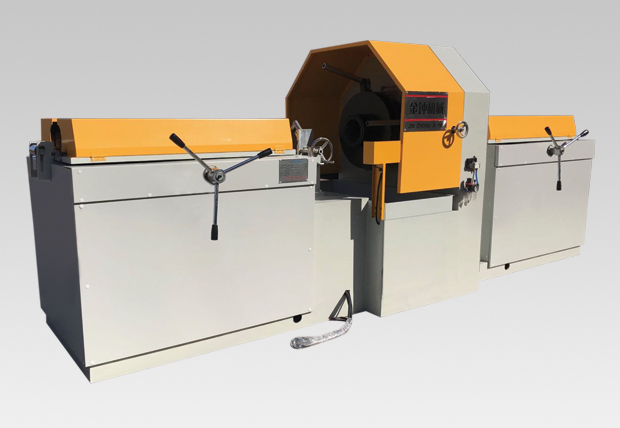

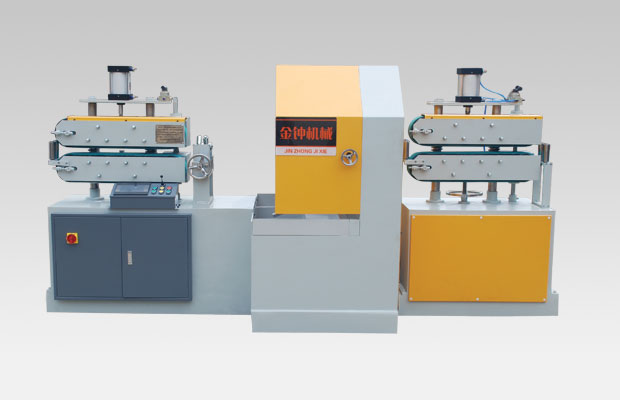

SCG Series Hard Core NC Wrapping Water Cloth Machine




SCG twine and untie water cloth machine s
SCG Series Hard Core NC Wrapping Water Cloth Machine structure and features:

This machine is a new type of NC wrapping water cloth machine developed and designed by our company. It is mainly used for wrapping water cloth with steel core rubber hose.
1.This machine adopts full automation (PLC + man-machine interface) to greatly improve work efficiency and reduce the operation skills of employees.
2.The central hanging fabric structure is adopted to improve the stability of entangled fabric, increase the loading capacity and improve the working efficiency.
3.Auto-monitoring and auto-adjusting function of unloading.
4.Fault detection function.
5.Fault detection function.
6.Pneumatic compression function (only applicable to SCG-A series).

Technical parameters:
SCG Series Hard Core NC Wrapping Water Cloth Machine
Product model
The
central height
(mm)
Main
shaft diameter
(mm)
Control pattern
The main
disk
revolution
(r/min)
Traction
structure
Cloth range
(mm)
Twining pitch (mm)
Hanging cloth form

Motor power
(kw)
Installation
dimensions
(L¡Á W¡ÁH)
SCG150-A
1050
Φ150
CNC
450
Vertical
Φ10-Φ51
30¡«70
Centre
7
3401×1150×1577
SCG150-B
1050
Φ150
CNC
450
Vertical
Φ10-Φ102
30¡«70
Centre
7
4000×1150×1577
SCG350-B
1359
Φ350
CNC
300
Vertical
Φ76-Φ152
30¡«70
Centre
11.5
55377×1480×2084
