Steel wire winding machine

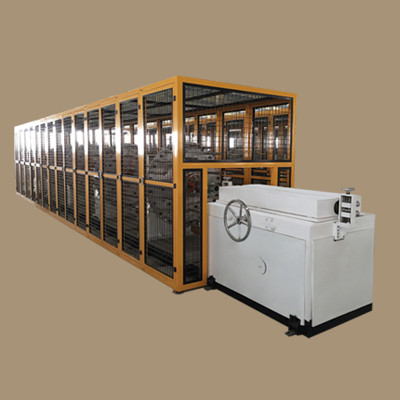

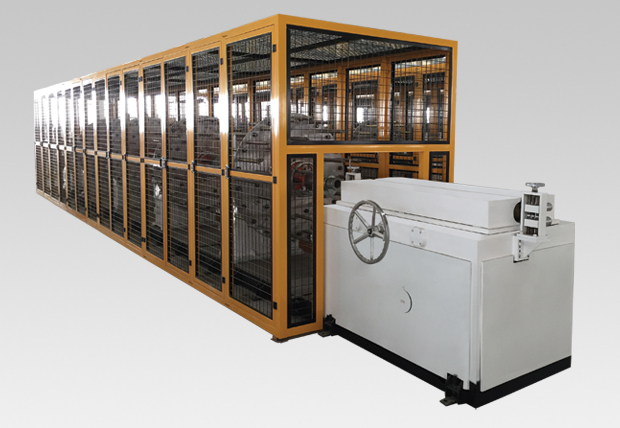

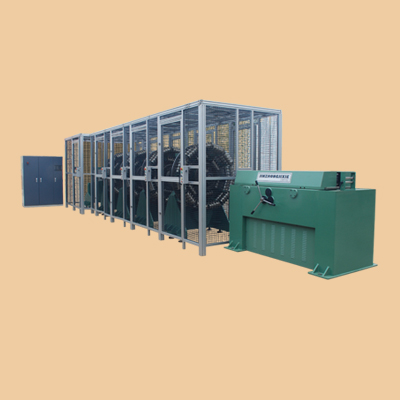

SCR Series Wire Winding Machine




SCR Series Wire Winding Machine
SCR series wire winding machine pertormance charateristics:

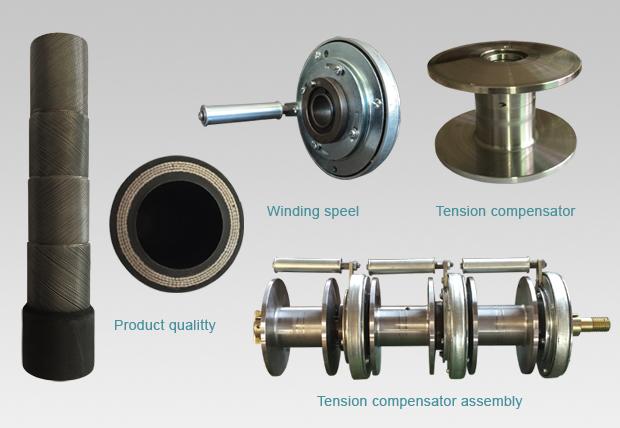

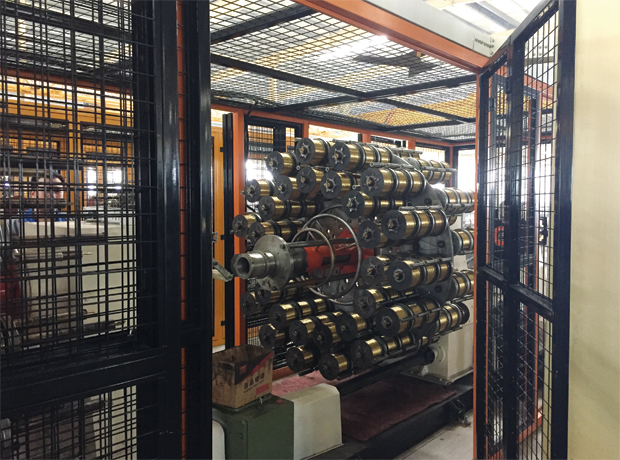

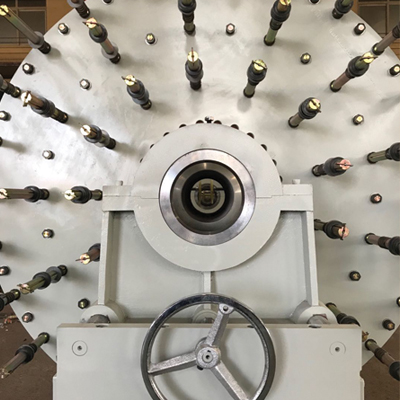

1.The machine is equipped with our company design the large capacity of rolling spooks and tension compensator , implements each wire under separate control force rises and machine adjustment in advance to ensure each wire pay-off tension to solve the big spool and small spool tension difference, overcome the coil rotating centrfugal force, improves the quality of the winding, reduces the waste of steel wire,improve work efficiency more than 50%.
2.Use every dish schedule separate control design,make each layer of steel wire can meet the requirements of winding technology.
3.Tractor adopts horizontal pressure traction and hard tooth face soft gearbox design,has big traction,traction speed advantages of stable and durable.

Technical parameters:
SCR series wire winding machine main technical parameters
Product model
Winding speed (m/min)
Hose
winding range
(mm)
Twining
pitch
(mm)
The
central height
(mm)
Motor
power
(kw)
Bobbin
capacity
(kg)
Number of wire roots per plate
(root)
Overall
dimensions
(L¡ÁW¡ÁH)
SCR120-4S
4
Φ6¡«Φ25
18-110
1110
40.5
9
120
11800¡Á1600¡Á2200
SCR180-4S
4
Φ10¡«Φ51
60-220
1300
40.5
9
180
14130¡Á1900¡Á2400
SCR200-4S
4
Φ16¡«Φ64
60-220
1300
40.5
9
200
14130¡Á1900¡Á2400
SCR180-220-4S
4
Φ64¡«Φ102
140-650
1266
78
18
182
14500¡Á2140¡Á2336
SCR210-270-4S
5
Φ76¡«Φ203
140-650
1354
78
18
210
14500¡Á2260¡Á2494





>
