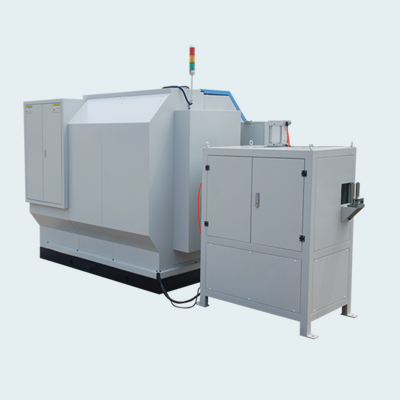

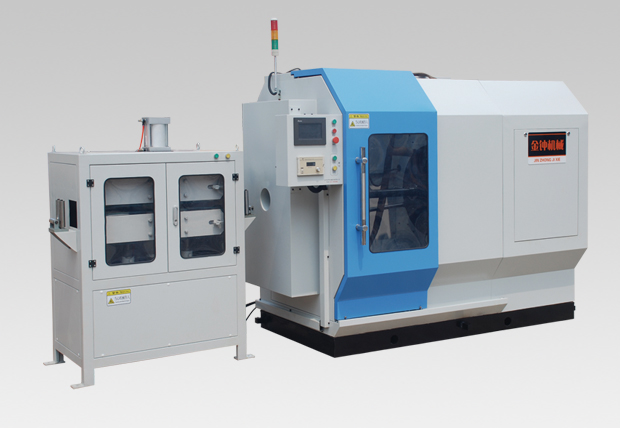

SCJ80 high-speed CNC soft core binding water cloth machine

Description:

This machine is for robber hose production machinery, It is mainly used for water cloth wrapped around the hose outer, after rubber sulfide in water, release the water cloth, to improve the quality of rubber products.

SCJ twine and untie water cloth machine structure and features:

1.This machine is our newly developed new type high speed CNC twine and untie water cloth machine,mainly used for soft core hose bound solution method of production rubber hose.
2.Adopt center hold the cloth, Increased the one-time loading capacity, decrease the times change cloth, suitable for large length of hose production use.
3.Fully sealed structure has greatly increased the production safety performance.
4.Full automation (PLC + the man-machine dialogue interface) greatly improve the working efficiency(2-3 times improve working efficiency) reduces the workers' skills at the same time.
5.Fault detection function.
6.No cloth stop function.
7.All auto operation twine and untie function.
8.Three color alarm prompt functions.
9.Pneumatic pressure function.

Technical parameters:

SCJ80 high-speed CNC soft core binding water cloth machine
Product model	The central height (mm)	Main shaft diameter (mm)	Control pattern	The main disk revolution (r/min)	Cloth range (mm)	Twining pitch (mm)	Hanging cloth form	Number of fabrics	Motor power (kw)	Installation dimensions (L× W×H)
SCJ-80	986	Φ80	CNC	650	Φ6-Φ25	30～70	Centre	4	7	1380×1674×1196
