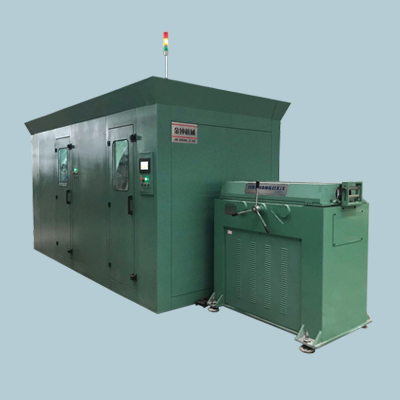

GAB Series NC Economical Steel Wire Knitting Machine

GAB serles CNC econmical steel wire braiding machine and the charecteristic

1.Using full digital control system (PLC + the man-machine dialogue interface) in achieving a production process onthe basis of digital control, reduces the employees' skills to improve the stability of product quality at the same time.
2.Guide plate is our own company design and developed iron carbon alloy guide plate, with the characteristics of long service life, compared with the domestic ordinary ductile iron increased the service life of the guide plate 3 to 4 times.
3.All the parts are made by high precision numerical control equipment by our own, parts can exchange, reduce the difficulty of maintenance, at the same time enhances the working efficiency of the equipment by more than 30%.
4.This machine equipped with our own designed new type of high speed spindle, on the basis of improve equipment production efficiency greatly improve the quality of the braiding performance. At the same time new spindle can be 2 times volume of wire compared with ordinary spindle spindle, reduce the frequency of wire changing in the process of reproduction.
5.No glue stop and warning function.
6.Confirmed length winding function.
7.Fault detection function.
8.Three color alarm prompt.

Technical parameters:

GAB series main technical parameters of single disk CNC economical wire braiding machine
Product model	Spindle largest revolutions (r/min)	Weaving pitch (mm)	Maximum braided hose Diameter (mm)	The central height (mm)	Motor power (kw)	Braided Angle	Bobbin capacity (kg)	Overall dimensions (L×W×H)
GAB-16	28	14-50	Φ10	900	6	54°44'	5.5	3574×1460×2100
GAB-20	22	14-60	Φ13	900	6	54°44'	5.5	3574×1460×2100
GAB-24	19	15-70	Φ25	900	6	54°44'	5.5	3574×1460×2100
GAB-36	12	26-135	Φ51	1000	8.5	54°44'	5.5	3804×1560×2200
GAB-48	8	65-273	Φ102	1163	12	54°44'	5.5	4300×2456×2100

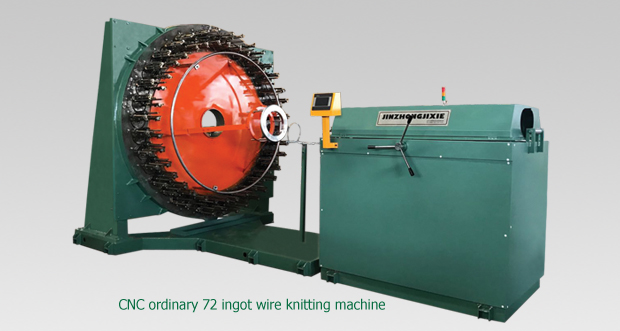

GAB-72	4.5	90-389	Φ152	1525	19.5	54°44'	5.5	6265×2850×3066

GAB series main Technical Parameters of Double-disc NC Economical Steel Wire Knitting Machine
Product model	Spindle largest revolutions (r/min)	Weaving pitch (mm)	Maximum braided hose Diameter (mm)	The central height (mm)	Motor power (kw)	Braided Angle	Bobbin capacity (kg)	Overall dimensions (L×W×H)
GAB16-2S	28	14-50	Φ10	900	9	54°44'	5.5	5120×1460×2100
GAB20-2S	22	14-60	Φ13	900	9	54°44'	5.5	5120×1460×2100
GAB24-2S	19	15-70	Φ25	900	9	54°44'	5.5	5120×1460×2100
GAB36-2S	12	26-135	Φ51	1000	14	54°44'	5.5	5616×1560×2200

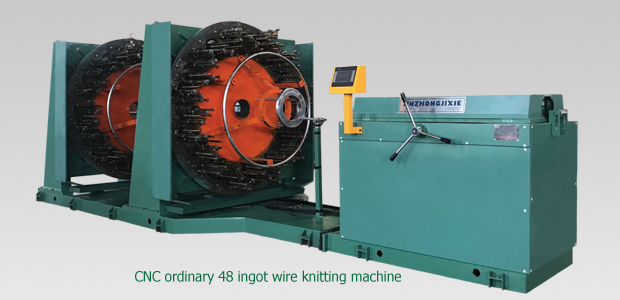

GAB48-2S	8	65-273	Φ102	1163	20	54°44'	5.5	6569×2456×2100
GAB78-2S	4.5	90-389	Φ152	1515	31.5	54°44'	5.5	9130×2850×3066
