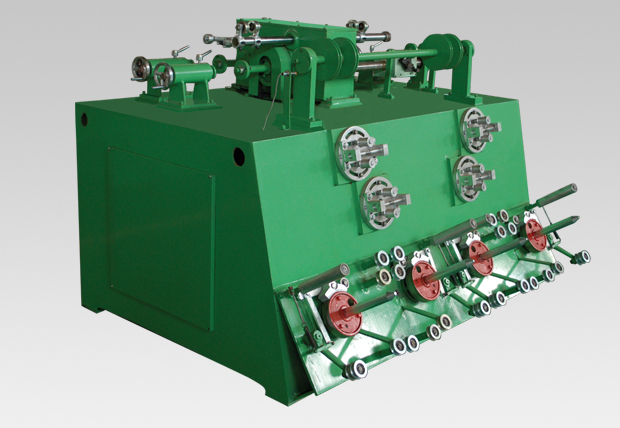

YC-4 series Steel wire pre-forming machine
General situation:
This machine is a auxiliary equipment for steel wire braiding machine, it makes steel wire according to the technological requirements of braiding machine molding in advance, then wind on spindles for braiding machine. Our company produce YC-4 types and SYC-4 CNC types.
YC - 4 series of ordinary steel wire pre-forming machine¡¯s characteristics:
(1) YC - 4 series of ordinary steel wire pre-forming machine is rolling ring traverse type.
Technical parameters:
Steel wire pre-forming machineTechnical parameters: |
|||||
Productmodel |
Spindle speed£¨m/s£© |
Max.spool diameter |
Wire diameter £¨mm£© |
Power of motor |
Installation dimensions (L¡Á W¡ÁH) |
ZHG-12 |
1000r/min |
Φ180 |
Φ0.2-Φ0.4 |
4kw |
1412×1690×1135 |
ZHG-18 |
1000r/min |
Φ180 |
Φ0.2-Φ0.4 |
4kw |
1380×1674×1196 |
